Key Elements of Pneumatic Systems: The Pneumatic Coupler

In pneumatic systems, pneumatic coupler are crucial parts. They give pneumatic hoses and pipes a quick and simple manner to be connected and disconnected. Applications for pneumatic couplers are countless and include construction, automotive, and manufacturing.

What is a pneumatic coupler?

A pneumatic coupler is a tool that makes it simple and quick to join and remove pneumatic pipes and hoses. Usually, plastic or metal are used to make pneumatic couplers. Both male and female parts are present. A poppet valve on the male portion is secured shut by a spring. A socket on the female part fits over the male part. The poppet valve opens and permits air to pass through when the male and female components are linked.

Types of pneumatic couplers

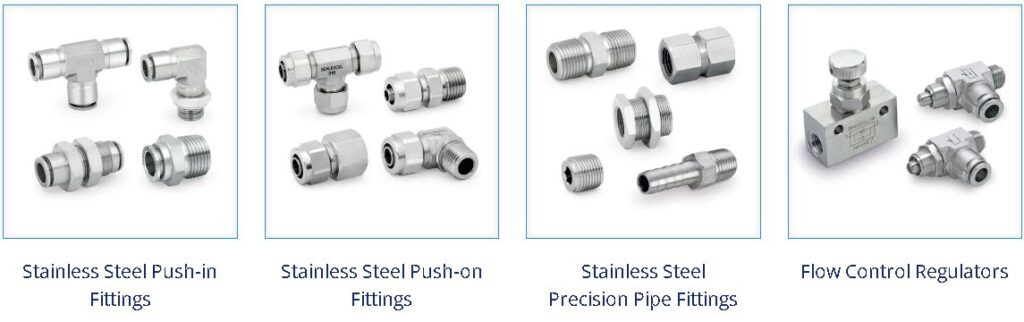

Pneumatic couplers come in a variety of forms. The most typical forms are:

• Straight couplers: The bodies of straight couplers are straight. They are the kind of pneumatic coupler that is most widely used.
• Elbow couplers: The bend of an elbow coupler is 90 degrees. They are employed when a turn in a pneumatic pipe or hose is required.
• Tee couplers: Tee couplers have a T-like form. They work to divide a pipe or pneumatic hose into two branches.
• Cross couplers: Cross couplers are shaped like an X. They can be used to join four pipes or pneumatic hoses.
• Push-to-connect couplers: The push-button on push-to-connect couplers is used to attach and disconnect the coupler.
• Screw-to-connect couplers: The threaded connection on screw-to-connect couplers is used to connect and disconnect the coupler.

Pneumatic coupler applications

Applications for pneumatic couplers are many and include:

• Manufacturing: In the manufacturing industry, pneumatic couplers are used to connect and disconnect pneumatic instruments, including sanders, grinders, and drills.
• Construction: In the construction industry, pneumatic couplers are used to connect and disconnect pneumatic tools like rivet guns and jackhammers.
• Automotive: In the automobile industry, pneumatic couplers are used to connect and disconnect pneumatic tools like tyre inflators and effect fasteners.
• Food and beverage: In the food and beverage sector, pneumatic couplers are used to attach and detach pneumatic machinery, including packaging and bottling machines.
• Pharmaceutical: In the pharmaceutical sector, pneumatic couplers are used to connect and disengage pneumatic machinery, including capping and filling machines.

Benefits of using pneumatic couplers

The use of pneumatic couplers has the following advantages:

• Quick and easy connection and disconnection: Connecting and disconnecting pneumatic couplers is quick and simple. Time and money can be saved in this way.
• Reliable: Pneumatic couplers are dependable and suitable for usage in challenging conditions.
• Versatile: There are many different uses for pneumatic couplers.
• Safe: Using pneumatic couplers is safe. They are made to guard against unintentional disconnections and leakage.

How to choose the right pneumatic coupler

The following elements should be taken into account when selecting a pneumatic coupler:

• The type of application: The application will decide the type of pneumatic coupler needed.
• The size of the hose or pipe: The size of the pipe or hose will determine the size of the pneumatic coupler needed.
• The working pressure: The pneumatic coupler’s working pressure will be determined by the pneumatic system’s operating pressure.
• The type of connection: The form of pneumatic coupler required will depend on the connection type.

Pneumatic coupler maintenance

Pneumatic fittings need very little service. But it’s crucial to check them frequently for damage. A damaged pneumatic coupler needs to be replaced.

Conclusion

In pneumatic systems, pneumatic couplers are crucial parts. They give pneumatic hoses and pipes a quick and simple manner to be connected and disconnected. Applications for pneumatic couplers are numerous and include construction, automotive, and manufacturing.
